CIRS 012A乳腺模體，CIRS 012A乳腺X射線組織等效模體描述

CIRS 012A乳腺模體包括4,5和6厘米厚的組織等效模型。每個幻影包含相同的嵌入細節（見地圖011A）。每個模體的腺體含量分別為50％，30％和20％。還包括phototimer補償板，使厚度范圍從0.5厘米至7厘米，腺體含量為30％，50％和70％。

一個補償板包含用于評估圖像質量的嵌入細節。包括一個重型泡沫內襯手提箱。

CIRS樹脂材料模仿一系列乳房組織的光子衰減系數。被模仿的人乳房的平均元素組成基于Hammerstein報道的脂肪和腺體組織的單個元素組成。

衰減系數通過使用JHHubbell的“混合規則”和光子質量衰減和能量吸收系數表來計算。


CIRS 012A乳腺模體產品特點：

在不同程度的厚度和腺體情況下評估圖像質量

為輻射劑量提供準確可靠的測試

確保一致的診斷有用圖像的生產

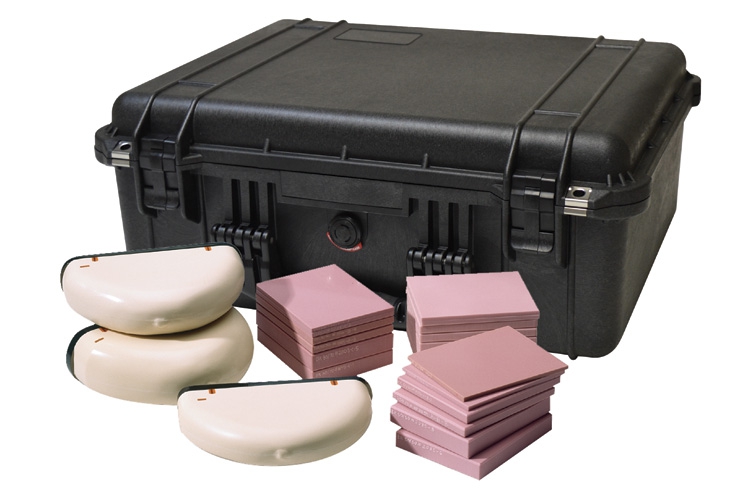

The CIRS mammography research set includes tissue equivalent phantoms 4, 5 and 6 cm thick. Each phantom contains identical embedded details (see map 011A). The glandular content of each phantom is 50%, 30%, and 20% respectively. Also included are phototimer compensation plates enabling a range of thickness from 0.5 cm to 7 cm with a glandular content of 30%, 50% and 70%.

One compensation plate contains embedded details for evaluation of image quality. A heavy duty foam lined carrying case are included.

CIRS resin material mimics the photon attenuation coefficients of a range of breast tissues. Average elemental composition of the human breast being mimicked is based in the individual elemental composition of adipose and glandular tissue reported by Hammerstein.

Attenuation coefficients are calculated by using the "mixture rule" and the Photon Mass Attenuation and Energy Absorption Coefficient Table of J.H. Hubbell.

Enable evaluation of image quality under varying degrees of thickness and glandularity

Provides accurate reliable test for radiation dose

Ensures consistent production of diagnostically useful images
