CIRS 602三維軀干模體，CIRS 602軀干模體
CIRS 602三維軀干模體，CIRS 602軀干模體旨在為醫(yī)學成像應用提供一個平均男性軀干的精確模擬。可移除的器官使TLD，造影劑等的放置具有靈活性。用于制造模體的環(huán)氧材料在40keV至20MeV的能量范圍內提供最佳的組織模擬。

CIRS 602三維軀干模體，CIRS 602軀干模體仿真模擬了診斷能量范圍內實際組織的物理密度和線性衰減在2％以內。

每個CIRS 602三維軀干模體，CIRS 602軀干模體包含可移動的器官。包括的器官是肺，心臟，肝臟，胰腺，腎臟和脾臟。模體的下半部分包含一個可移動的軟質團塊材料，模擬50％脂肪和50％肌肉組織的混合物。

這個插入物用于在模體直立時保持器官的位置。為了便于取出，食團被包在一個屏幕袋中。模擬肌肉材料層肋骨和脊柱。

外部信封模擬30％脂肪和70％肌肉組織的混合物。模體在底部由丙烯酸板密封。模擬流體的水或血液可以用來填充所有的間隙空隙。

CIRS 602三維軀干模體，CIRS 602軀干模體特點和好處
在診斷能量范圍內準確模擬實際組織的物理密度和線性衰減在2％以內
包含可移除的器官，包括肺，心臟，肝臟，胰腺，腎臟和脾臟。
模體的下半部分包含一個可移動的軟質團塊材料，模擬50％脂肪和50％肌肉組織的混合物。
模擬肌肉材料層肋骨和脊柱。
外部信封模擬30％脂肪和70％肌肉組織的混合。
底部用亞克力板密封。
模擬流體的水或血液可以用來填充所有的間隙空隙。


CIRS 602三維軀干模體，CIRS 602軀干模體包括的材料
具有骨骼結構的組織等效軀干腔

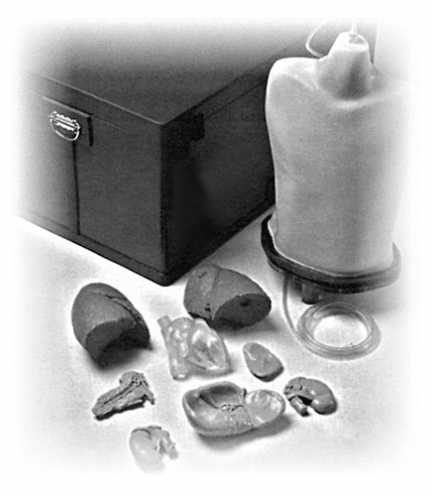

可移動的肺，心臟，肝臟，胰腺，脾臟和腎臟
管道，耦合器，真空泵和硬件
泡沫襯里的手提箱
技術手冊

CIRS 602三維軀干模體，CIRS 602軀干模體保修信息
4年保修

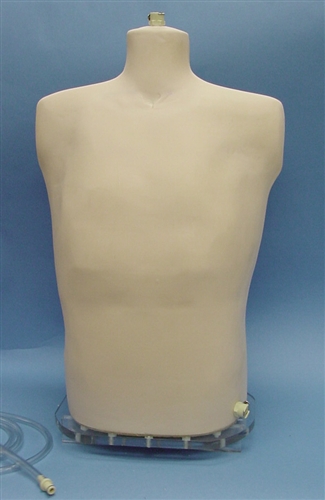

The CIRS Anthropomorphic Torso Phantom is designed to provide an accurate simulation of an average male torso for medical imaging applications. The removable organs enable flexibility in the placement of TLD’s, contrast agents, etc. The epoxy materials used to fabricate the phantom provide optimal tissue simulation in the 40 keV to 20 MeV energy range.

The phantom simulates the physical density and linear attenuation of actual tissue to within 2 percent in the diagnostic energy range.

Each phantom contains removable organs. Included organs are lungs, heart, liver, pancreas, kidney, and spleen. The lower portion of the phantom contains a removable soft bolus material simulating a mix of 50 percent adipose and 50 percent muscle tissue.

This insert is used to maintain the position of the organs when the phantom is placed upright. For ease of removal, the bolus is enveloped in a screen-bag. Simulated muscle material layers the rib cage and vertebral column.

The exterior envelope simulates a mix of 30 percent adipose and 70 percent muscle tissue. The phantom is sealed at the bottom by an acrylic plate. Water or blood mimicking fluid can be used to fill all the interstitial voids.

Removable lungs, heart, liver, pancreas, kidney and spleen

Flexibility in TLD placement

Optimal tissue simulation in the diagnostic energy range and up to 20 MeV

Physical density and linear attenuation within 2 percent of actual tissue

Interstatial voids fillable with water or blood-mimicking fluid

Includes foam-lined carry case, user guide and 48-month warranty
