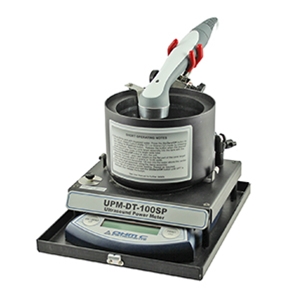

美國Ohmic UPM-DT-100SP超聲功率計，200mW分辨率
根據AIUM，JCAHO，F(xiàn)DA和NIST指南，UPM-DT-100SP型超聲功率計開發用于測試治療傳感器。自1977年以來，OHMIC的超聲波功率表已被廣泛應用于世界各地，是醫療傳感器功率輸出記錄最為廣泛的標準。UPM-DT系列產品的性能經過了美國食品和藥物管理局（FDA）和美國國家標準與技術研究院（NIST）制定的容限的測試和驗證。緊湊輕便的UPM-DT-100SP超聲功率計可滿足便攜式測試儀器的所有要求，具有UPM-DT系列的可靠性和經過驗證的性能。UPM-DT-100SP超聲功率計使用與高分辨率UPM-DT-1和UPM-DT-10相同的測試箱和目標配置。

UPM-DT-100SP超聲功率計的特點：

•性能經FDA和NIST測試
•五點認證（NIST可溯源）
•分辨率：200 mW（150 mW，克模式）
•測量范圍：  0-30瓦
•頻率范圍：  .5 -10 mhz
•測量總脈沖或連續功率
•自動歸零和穩定
•可選讀數單位為瓦或克
•電池或線路供電
•數字顯示和RS-232接口



UPM-DT-100SP超聲功率計電源信息

BC20-21113

除UPM-DT-50SP Rev B和UPM-100SP Rev B以外的所有芬歐匯川電源（通用），用于歐洲，英國，澳大利亞，美國
BC20-21119

UPM-DT-50SP Rev B和UPM-100SP Rev B的電源（通用），帶歐洲，英國，澳大利亞，美國的插頭

UPM-DT-100SP超聲功率計標配包括以下附件：
金屬外殼 - 黑色
通用電源
1克校準重量
NIST可溯源校準證書
用戶手冊



The most reliable and repeatable means of measuring ultrasound power is by the radiation force method. The transducer to be tested is centered above a 45° air-backed cone target in de-gassed water. The coupling is made to a precision balance capable of resolving ± 0.15 watts. When acoustic energy is applied to the cone, the resultant force is directly proportional to the total radiated power. The test tank is lined with sonic absorbent rubber to prevent acoustic reflection. The balance is programmed to convert milligram magnitude forces direct to a readout in watts with good resolution. Measurement accuracy of the power meter can be verified by placing a calibrated weight on the cone’s support arm.

Features for the USP50SP:
• Resolution: 50mW (150 mW in grams mode)
• Measurement range: 0 to 30 Watts
• Frequency range: .5 to 10mHZ
• Measures pulsed or continuous power
• Selectable readout in watts or grams
• Battery or line-powered
• Digital liquid crystal display
• Optional RS-232 or USB interface
• Automatic zeroing & stabilization
• Five point certification (NIST traceable)


Power Supply Information

BC20-21113

Power supply (Universal) for all UPM's except UPM-DT-50SP Rev B and UPM-100SP Rev B w/plugs for EUR, UK, AUS, USA
BC20-21119

Power supply (Universal) for UPM-DT-50SP Rev B and UPM-100SP Rev B w/plugs for EUR, UK, AUS, USA
